Configure your product, order and pay online, the goods will be delivered quickly and safely.
HPT prides itself on being a highly regarded provider of high-pressure and flow control equipment, including the design and manufacture of Hydraulic and Gas Power Units, Valve Testing, Hose Testing, Actuation Control Systems, Flushing Rigs and High-Pressure Fatigue/Cycle test systems. In addition to its proprietary range of Air Driven Liquid Pump and Gas Booster equipment, HPT creates custom-designed and engineered solutions to cover a wide range of pressure testing applications Applications:

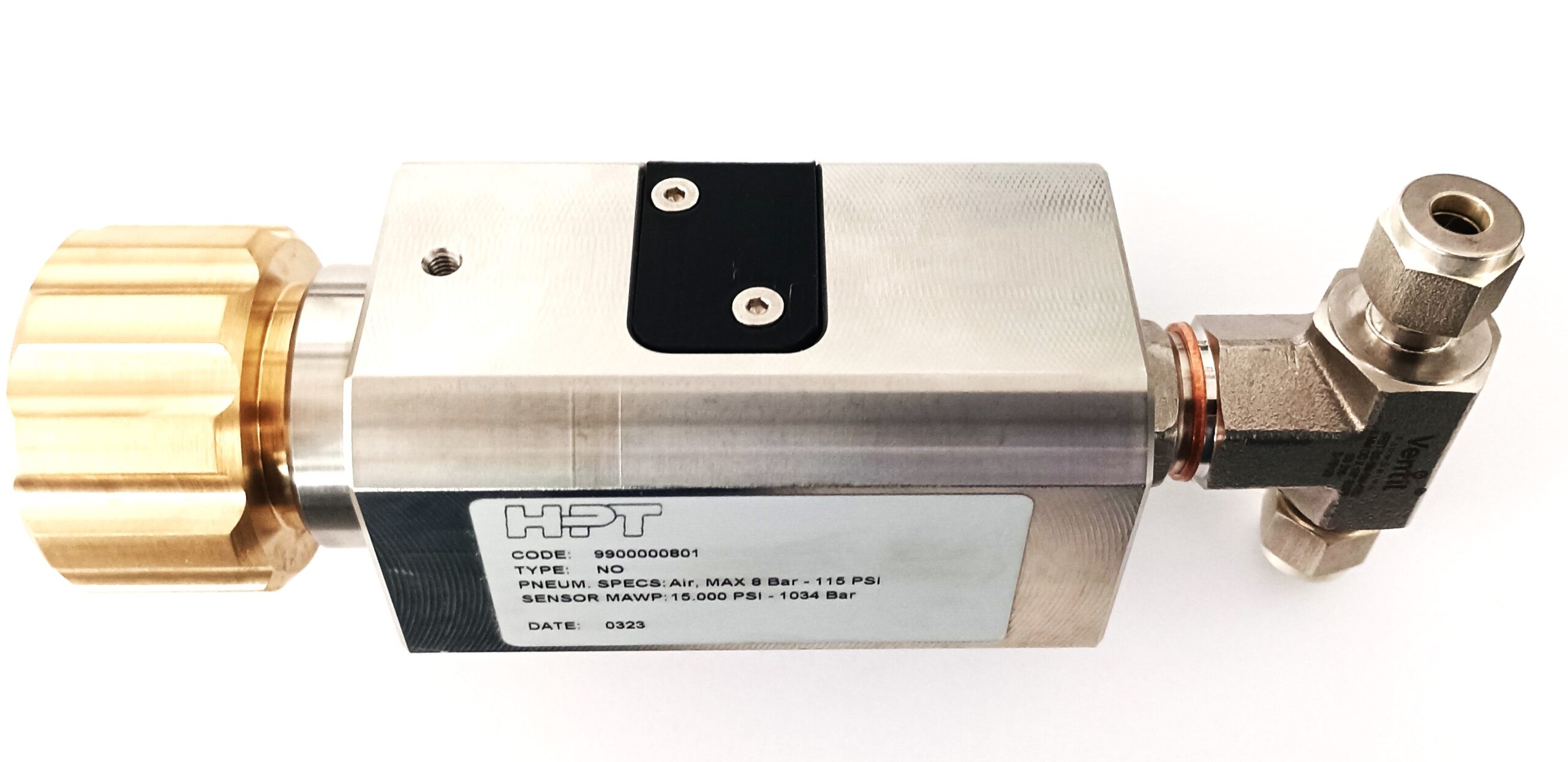

3-way , 2-position pneumatic/hydraulic pressure valves, actuated by an adjustable pneumatic/hydraulic pressure switch. Technical Features Sensor MAWP: 15,000 psi (1034 bar)Operating temperature range: from –10°C / +60°CValve operating pressure: 22÷116 psi / 1,5÷8 barProcess media: Gas – LiquidProcess media: Filtered airStandard materials: AISI 302 /AISI 316L / CW614N / FKM / FILLED PTFESensor connection: 1/4″ BSPPValve connection: Push fittings Ø 4 mmMounting: Front – Rear – SideWeight: 1,6 KgSetting range up to: 6,000 psi 8414 bar)

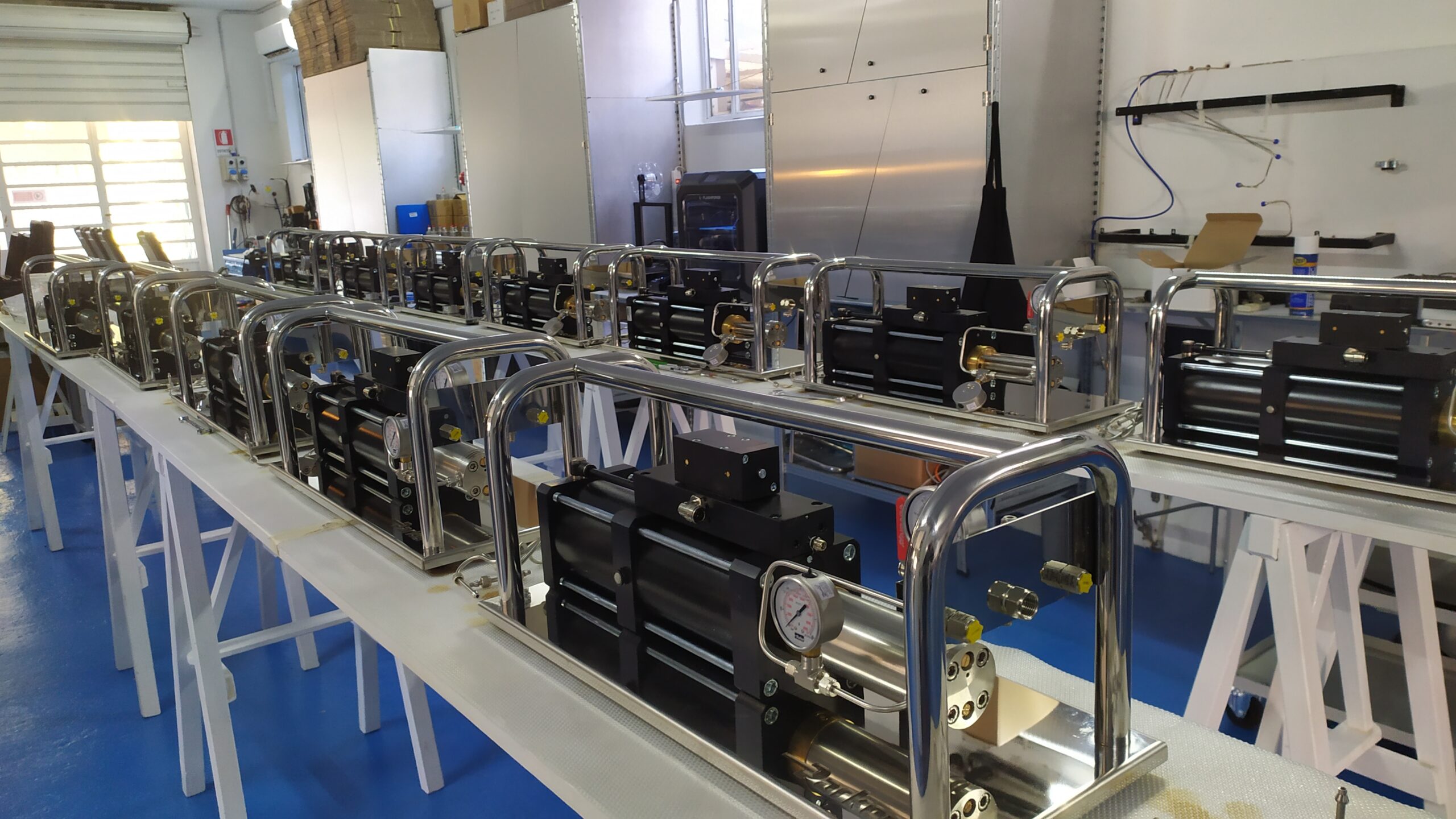

High Pressure Technology designs and manufactures sturdy, safe and reliable gas boosters that aim at being an example in the industry.The pneumatic-driven gas boosters by High Pressure Technology can produce pressures up to 20,000 psi (1378 bar) and they can be used for virtually all industrial gases; they are the ideal for gas pressure increases, high pressure gas transference, cylinder charging, and scavenging.Flexible and efficient air-driven gas boosters for delivering high-pressure gases. Applications:Pressure testingChemical injectionAccumulator chargingGas transferAir, Nitrogen, Helium & Other Gases Applications
