9900000802 | 15K 60-414 bar NC
Il prezzo originale era: €600,00.€500,00Il prezzo attuale è: €500,00.9900000801 | 15K 60-414 bar NO

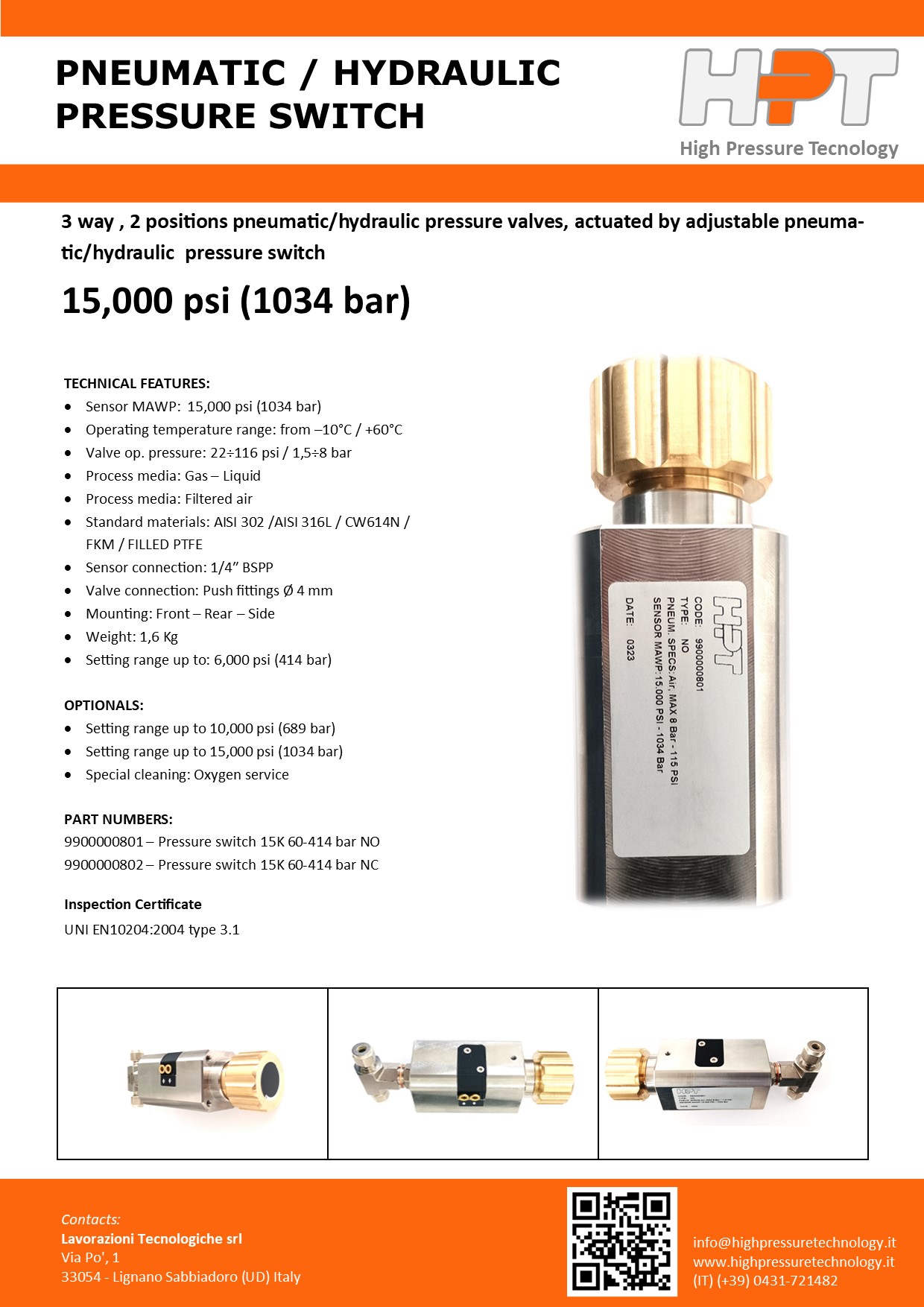

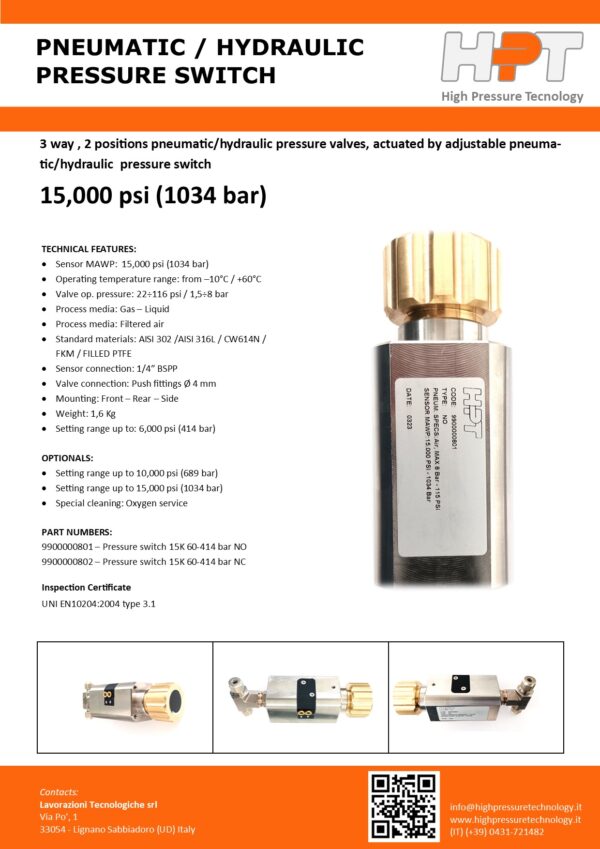

Pneumatic / Hydraulic Pressure Switch
RATING: 15,000 psi (1034 bar)
Switch contact: NO
Il prezzo originale era: €600,00.€500,00Il prezzo attuale è: €500,00.
Descrizione
TECHNICAL FEATURES:
• Sensor MAWP: 15,000 psi (1034 bar)
• Operating temperature range: from –10°C / +60°C
• Valve op. pressure: 22÷116 psi / 1,5÷8 bar
• Process media: Gas – Liquid
• Process media: Filtered air
• Standard materials: AISI 302 /AISI 316L / CW614N / FKM / FILLED PTFE
• Sensor connection: 1/4″ BSPP
• Valve connection: Push fittings Ø 4 mm
• Mounting: Front – Rear – Side
• Setting range up to: 6,000 psi (414 bar)
OPTIONALS:
• Setting range up to 10,000 psi (689 bar)
• Setting range up to 15,000 psi (1034 bar)
• Special cleaning: Oxygen service
Informazioni aggiuntive
Peso | 1,6 kg |
---|---|
BRANDS | HPT |
