BALL VALVE | 20,000 PSI (1379 BAR)
€390,00 – €494,00
Liquid Pump Systems ABS Case HL-SD2-1
€7.536,00 – €14.420,00

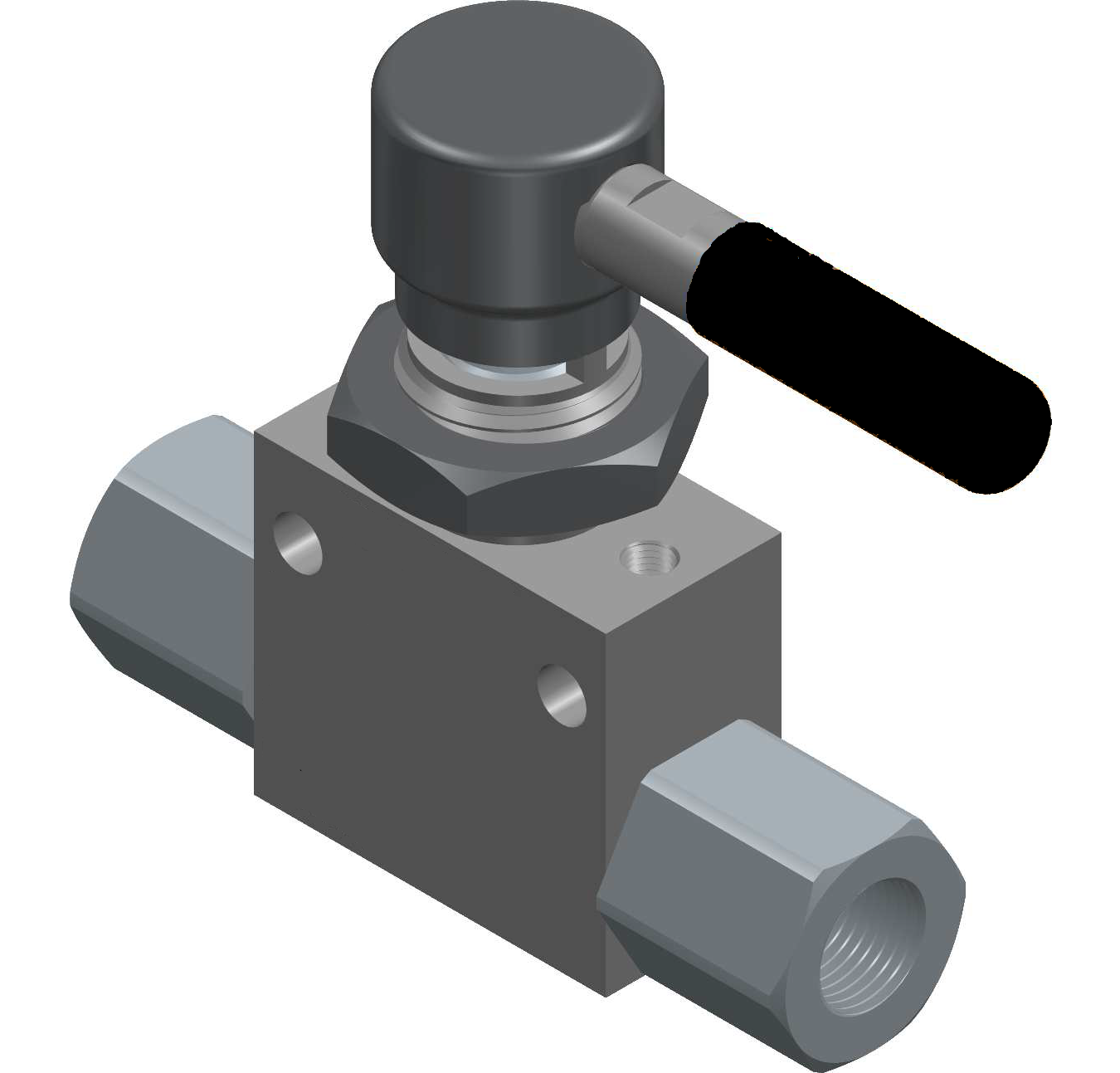

BALL VALVE | 15,000 PSI (1034 BAR)
Low Pressure ball valves are designed to provide high performance in process plants, are available in many variants that differ in size,
connections and materials employed.
The design of this valves are compact to facilitate their integration within existing plants and the use of
materials with high resistance to corrosion, abrasion and vibration, considerably extends their productive life.
- Floating Ball Valve
- Pressure: 20,000 psi (1379 bar)
- Connections from 1/4” to 1/2” NPT-F thread
- Two way configuration
- PEEK seats offer excellent resistance to chemicals and wear/abrasion.
- Full bore flow to minimizes pressure drop
- Excellent corrosion resistance and greater durability for repeatd on/of cycles
- Panel mounting
- Stem packing RPTFE glass filled teflon
- 3.1 (UNI EN 10204) certificate included
€420,00 – €532,00
Descrizione
High Pressure Needle Valves are available in applications such as the chemical/petrochemical, water-blast, water-jet, research,
and oil and gas industries. In all version Medium Pressure Needle Valves Gland Nut and Collar are included.
Features
• Pressure 60,000 psi (4137bar)
• Connections from 1/4” to 9/16” coned and threaded
tube
• Non-rotatig stem and bar stock body design
• Metal-to-metal seating achive ideal shutoff, longer stem/
seat service lifetime for abrasive flow
• Excellent corrosion resistance and greater durability for
repeatd on/of cycles
• RPTFE standard paking material
• Packing RPTFE can be operated from –100°F (-73°C) to +
600°F (316°C)
• The locking device of packing gland is reliable
• 3.1 (UNI EN 10204) certificate included
• Standard body material AISI 316/316L
