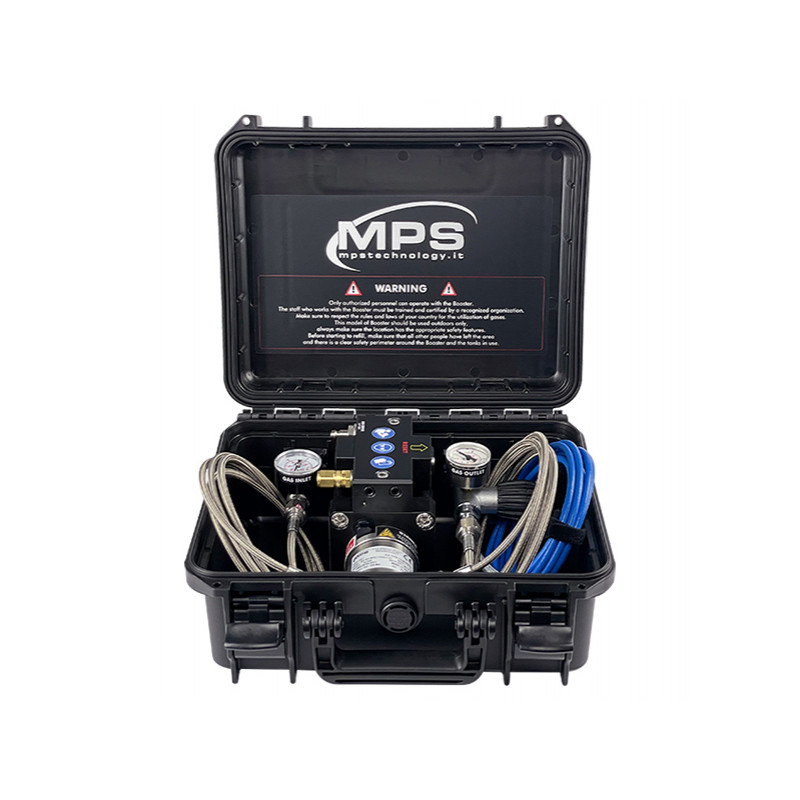

Booster MPS TECHNOLOGY C1 LIGHT SPORT
Booster for sport diving, particularly recommended for CCR divers and technical divers in general.
The new Sport line is designed to be the most portable, lightest and most complete filling system ever created.
€2.169,00 – €3.139,00
Descrizione
Benefits of this booster:
– Annual HP maintenance, BP maintenance every 5 years,
– Robustness and reliability,
– Protection of the operator,
– Double steel braided hoses with Teflon coating to ensure oxygen compatibility and no deposit on the hose
– Delivered complete and ready to use
Package includes:
– Booster,
– Case,
– Upstream and downstream hoses,
– Low pressure supply hose with direct system connector for your regulator and flow control valve.
Main Features
– Single stage, single action gas booster,
– Compression ratio: 25/1,
– Maximum motor air: 10-13bar,
– Piston length : 40mm,
– Displacement: 9cc,
– Maximum booster pressure: 230 Bar in standard, 310 bar on request,
– Minimum upstream pressure: 5 Bar,
– Air drive inlet connection: 1/4″ micro quick coupling,
– Engine air pressure reducer: No,
– HP gas inlet connection: 2m stainless steel braided hose, filter, 40mm pressure gauge 0-400 Bar, DIN G5/8 230/300b connection,
– Dimensions: 33,6x30x14,8cm,
– Total weight with case and lyre: 6 Kg.
Standard recommendations for handling and international recommendations specifically for oxygen:
– The operator must be trained in the use of the booster and the compression of oxygen, you can contact us for training with our instructors,
– The speed of balancing through the booster should not exceed 5b per minute,
– The boosting speed should not exceed 5 bar per minute,
– The pressure ratio between the source cylinder and the target cylinder should not exceed 4:1,
– The high pressure section must be maintained once a year,
– The low pressure section must be maintained once every 5 years.
Protective measures are integrated in the MPS Technology boosters, breaking the different joints in order to prevent incidents at the level of the booster, the operator and the premises. In case of non respect of the rules of use, and triggering of a protection measure, a maintenance of your booster will be necessary.
Informazioni aggiuntive
Peso | N/A |
---|---|
Dimensioni | N/A |
BRANDS | MPS |
MAX OUT PRESSURE | 230 BAR (3300 PSI), 310 BAR (4500 PSI) |
