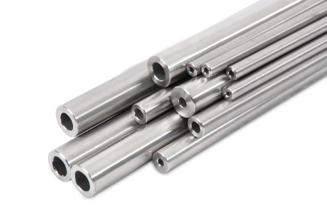

Medium and High Pressure SS Tubings
Cold draw seamless tubing
From 1380 to 4150 bar (20000 to 60000 psi)
Description
Cold drawn thick wall seamless tubing for fluid or gas high pressures applications such as hydraulic, test equipment, waterjet and water-cutting
Material
Stainless steel TP316/316L Also available upon request in Hastelloy, Duplex, Superduplex, Inconel and Monel
Standard
6 meters (20 feet) Also available in different lengths upon request
External surface finish
Bright finish, free from lumps, flaws and fissures
Inner surface finish
Minimum 100 RMS = 2,3 Ra μm = 92 AARH
Tolerance
OD and ID: ±0,1 mm WT: ±10%
Temperature range
-252°C to +649°C (-421°F to +1200°F)
€56,00 – €816,00
Descrizione
Cold draw seamless tubing
From 1380 to 4150 bar (20000 to 60000 psi)
Description
Cold drawn thick wall seamless tubing for fluid or gas high pressures applications such as hydraulic, test equipment, waterjet and water-cutting
Material
Stainless steel TP316/316L Also available upon request in Hastelloy, Duplex, Superduplex, Inconel and Monel
Standard
6 meters (20 feet) Also available in different lengths upon request
External surface finish
Bright finish, free from lumps, flaws and fissures
Inner surface finish
Minimum 100 RMS = 2,3 Ra μm = 92 AARH
Tolerance
OD and ID: ±0,1 mm WT: ±10%
Temperature range
-252°C to +649°C (-421°F to +1200°F)
Informazioni aggiuntive
| Peso | N/A |
|---|---|
| Dimensioni | N/A |
| PRESSURE RATING | |
| CONNECTIONS | |
| BAR LENGTH | 1 meter (3.28 ft), 3 meters (9.84 ft), 6 meters (19.69 ft) |
| BRANDS | HPT |
